3" brushless Hybrid solar submersible pump with plastic impeller solar powered pump
3" brushless Hybrid solar submersible pump with plastic impeller solar powered pump
Categories | AC/DC SOLAR SUBMERSIBLE PUMP |
---|---|
Brand | DIFFUL |
Model | 3DPC-A/D |
Type | AC/DC solar pump with plastic impeller |
Pump Body Material | Stainless steel |
Outlet Material | Brass |
impeller Material | Plastic |
Package type | wooden case |
Warranty | 2 years |
Certificate | CE, GS, RoHS |
Application | irrigation,farm,ranch,garden,Household water |
Update Time | Dec 4,2024 |
Detail Information
3 INCH AC/DC SOLAR PUMP WITH PLASTIC IMPELLER
3" PLASTIC IMPELLER SOLAR PUMP | |||||
---|---|---|---|---|---|
Model | Power(W) | Voltage(V) | Max flow(m3/h) | Max head(m) | Outlet(inch) |
3DPC3.5-95-110-750-A/D | 750 | 110 | 3.5 | 95 | 1.25" |
3DPC3.8-123-150-1100-A/D | 1100 | 150 | 3.8 | 123 | 1.25" |
3DPC3.8-155-150-1300-A/D | 1300 | 150 | 3.8 | 155 | 1.25" |
3DPC3.8-180-200-1500-A/D | 1500 | 200 | 3.8 | 180 | 1.25" |
3DPC5.2-75-110-750-A/D | 750 | 110 | 5.2 | 75 | 1.5" |
3DPC5.5-65-110-750-A/D | 750 | 110 | 5.5 | 65 | 1.5" |
3DPC6-84-150-1100-A/D | 1100 | 150 | 6 | 84 | 1.5" |
3DPC6-125-200-1500-A/D | 1500 | 200 | 6 | 125 | 1.5" |
3DPC7-46-110-750-A/D | 750 | 110 | 7 | 46 | 1.5" |
3DPC7.5-62-150-1100-A/D | 1100 | 150 | 7.5 | 62 | 1.5" |
3DPC7.5-78-200-1500-A/D | 1500 | 200 | 7.5 | 78 | 1.5" |

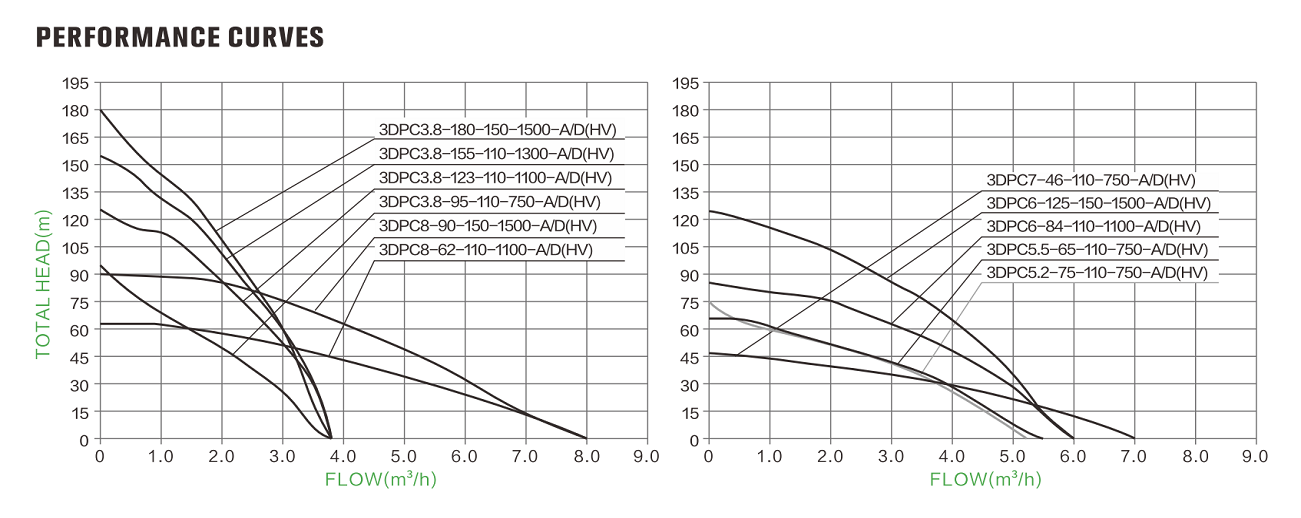

3 INCH AC/DC PLASTIC IMPELLER SOLAR PUMP PARAMETER
HOW TO CHOOSE A PUMP
-
Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
-
Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according todifferent folw and prices.
