Innovative Technology-leading Solar Pump Manufacturer
- Solar Submersible Pump
Use solar power to pump groundwater. Provides a cost-effective way to supply users with safe and clean water.
- Solar Surface Pump
Your preferred irrigation system. Automated systems reduce operating costs while increasing crop yields.
- Solar Pool Pump
Using a solar pool pump makes a lot of sense, and pools tend to get more use when the sun is shining.
- DC Water-filled Motor Solar Pump
Submerging depth can reach 150 metersMore energy saving and environmental protection with water-filled motor
- High Speed Deep Well Pump
The whole pump is small volume, saving the pump installation cost into the well.Maximum 6000RPM.
- Solar Aerator Pumps
Reduce reliance on the grid, reduce carbon emissions and reduce operating costs to ensure your production is on target.
- Water Pump Controller Technology
MPPT technology maximizes the power utilization of photovoltaic modules and continues to improve.
- Pump Motor Technology
Water-filled motors ensure reliability and avoid oil contamination. Brushless DC motor is specially designed for solar power.

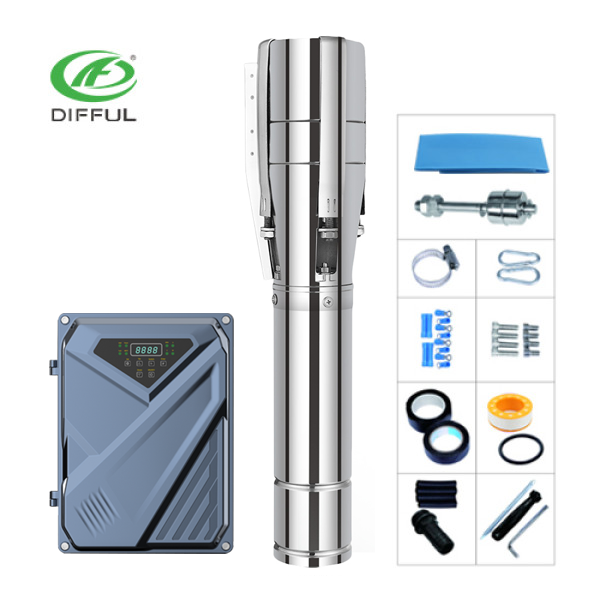

4/6"AC/DC brushless solar pump with S/S impeller(3KW-4KW), solar power water pump manufacturers
4/6"AC/DC brushless solar pump with S/S impeller(3KW-4KW), solar power water pump manufacturers
| Categories | AC/DC SOLAR SUBMERSIBLE PUMP |
|---|---|
| Brand | DIFFUL |
| Model | 4/6DSC-A/D |
| Type | Solar water pump with S/S impeller |
| Material | Stainless steel |
| Package type | Wooden case |
| Warranty | 2 years |
| Certificate | CE, GS, RoHS |
| Application | Household;irrigation,livestock |
| Update Time | Nov 24,2024 |
|
ITEM
|
Max.flow（m³/h) | Max.head（m） | AC voltage（V） |
OptimumDC voltage（V）
|
Power （kw） | Outlet （inch） |
Cable（m） | Solar panel | ||
Open circuit voltage(VOC) | Power | |||||||||
|
4/6DSC30-70-380/520-3000-A/D
|
30 | 70 | AC380/DC520 |
520-650
|
3 | 3 |
2 | <780V | ≥1.3*PUMP POWER | |
4/6DSC30-100-380/520-4000-A/D | 30 | 100 | AC380/DC520 | 520-650 | 4 | 3 | 2 | <780V | ≥1.3*PUMP POWER | |
4/6DSC36-56-380/520-3000-A/D | 36 | 56 | AC380/DC520 | 520-650 | 3 | 3 | 2 | <780V | ≥1.3*PUMP POWER | |
4/6DSC36-80-380/520-4000-A/D | 36 | 80 | AC380/DC520 | 520-650 | 4 | 3 | 2 | <780V | ≥1.3*PUMP POWER | |
4/6DSC46-51-380/520-3000-A/D | 46 | 51 | AC380/DC520 | 520-650 | 3 | 3 | 2 | <780V | ≥1.3*PUMP POWER | |
4/6DSC46-68-380/520-4000-A/D | 46 | 68 | AC380/DC520 | 520-650 | 4 | 3 | 2 | <780V | ≥1.3*PUMP POWER | |
4/6DSC65-42-380/520-4000-A/D | 65 | 42 | AC380/DC520 | 520-650 | 4 | 3 | 2 | <780V | ≥1.3*PUMP POWER | |
How deep is your well (borehole)?
What is the distance between the tank and the well?
What is the height of the tank?
What is your requirement for the flow rate (L/H)?
Calculate the "actual lift needed" and find an appropriate pump.
Then choose the most suitable pump according to different flow rates and prices as well as pump materials.
