4"DC brushless solar pump with S/S impeller for irrigation, solar power water pump manufacturers, solar factory

4"DC brushless solar pump with S/S impeller for irrigation, solar power water pump manufacturers, solar factory

4"DC brushless solar pump with S/S impeller for irrigation, solar power water pump manufacturers, solar factory
4"DC brushless solar pump with S/S impeller for irrigation, solar power water pump manufacturers, solar factory4"DC brushless solar pump with S/S impeller for irrigation, solar power water pump manufacturers, solar factory4"DC brushless solar pump with S/S impeller for irrigation, solar power water pump manufacturers, solar factory4"DC brushless solar pump with S/S impeller for irrigation, solar power water pump manufacturers, solar factory4"DC brushless solar pump with S/S impeller for irrigation, solar power water pump manufacturers, solar factory
CategoriesAC/DC SOLAR SUBMERSIBLE PUMP
BrandDIFFUL
Model4DSC
TypeSolar water pump with S/S impeller
MaterialStainless steel
Package typeWooden case
Warranty2 years
CertificateCE, GS, RoHS
ApplicationHousehold;irrigation,livestock
Update TimeJan 19,2025
Contact Now
Favorites
Detail Information
INTRODUCTION
PRODUCT PACKAGING
WIRING INSTRUCTIONS
4"AC/DC Brushless Solar Pump with Stainless steel Impeller
4 inch AC/DC brushless submersible solar powered water pump direct sales from solar water pumps manufacturers
Stainless steel impeller: More durability, corrosion resistance, heat resistance, impact resistance and strength
Max Flow range: 6-30m3/h
Max Head range: 96-420m
5.5-22KW AC/DC auto-switching controller: Avaliable for providing household water, livestock husbandry and irrigation
DIFFUL Solar Water Pumps and Controllers
4"AC/DC Brushless Solar Pump with Stainless steel Impeller Technical Data
ITEM
Max.flow（m³/h)
Max.head（m）
DC voltage（V）
Power
（w）
Outlet
（inch）
Cable（m）
Solar panel
Open circuit voltage(VOC)
Power
4DSC3.5-50-48-400
3.5
50
48
400
1.25
2
<110V
≥1.3*PUMP POWER
4DSC3.5-86-48-600
3.5
86
48
600
1.25
2
<110V
≥1.3*PUMP POWER
4DSC3.5-86-72-600
3.5
86
72
600
1.25
2
<170V
≥1.3*PUMP POWER
4DSC3.5-105-48-750
3.5
105
48
750
1.25
2
<110V
≥1.3*PUMP POWER
4DSC3.5-105-72-750
3.5
105
72
750
1.25
2
<170V
≥1.3*PUMP POWER
4DSC3.5-140-72-1100
3.5
140
72
1100
1.25
2
<170V
≥1.3*PUMP POWER
4DSC3.5-140-110-1100
3.5
140
110
1100
1.25
2
<220V
≥1.3*PUMP POWER
4DSC4.8-203-110-1500
4.8
203
110
1500
1.25
2
<220V
≥1.3*PUMP POWER
4DSC6-45-48-500
6
45
48
500
1.25
2
<110V
≥1.3*PUMP POWER
4DSC6-67-48-750
6
67
48
750
1.25
2
<110V
≥1.3*PUMP POWER
4DSC6-67-72-750
6
67
72
750
1.25
2
<170V
≥1.3*PUMP POWER
4DSC6-101-72-1100
6
101
72
1100
1.25
2
<170V
≥1.3*PUMP POWER
4DSC6-101-110-1100
6
101
110
1100
1.25
2
<220V
≥1.3*PUMP POWER
4DSC6-146-110-1300
6
146
110
1300
1.25
2
<220V
≥1.3*PUMP POWER
4DSC9.5-50-72-750
9.5
50
72
750
2
2
<170V
≥1.3*PUMP POWER
4DSC9.5-50-110-750
9.5
50
110
750
2
2
<220V
≥1.3*PUMP POWER
4DSC9.5-90-110-1500
9.5
90
110
1500
2
2
<220V
≥1.3*PUMP POWER
4DSC15-45-72-750
15
45
72
750
2
2
<170V
≥1.3*PUMP POWER
4DSC15-45-110-750
15
45
110
750
2
2
<220V
≥1.3*PUMP POWER
4DSC15-55-110-1100
15
55
110
1100
2
2
<220V
≥1.3*PUMP POWER
4DSC16-70-110-1500
16
70
110
1500
2
2
<220V
≥1.3*PUMP POWER
4DSC20-48-110-1500
20
48
110
1500
2
2
<220V
≥1.3*PUMP POWER
4DSC25-26-110-1500
25
26
110
1500
2
2
<220V
≥1.3*PUMP POWER
4"AC/DC Brushless Solar Pump with Stainless steel Impeller Hydraulic Performance Curves
DIFFUL solar water pump parameters
How to choose a solar pump:
1. Confirm your technical requirements
How deep is your well (borehole)?
What is the distance between the tank and the well?
What is the height of the tank?
What is your requirement for the flow rate (L/H)?

2. Choose solar pumps according to your needs
Calculate the "actual lift needed" and find an appropriate pump.
Then choose the most suitable pump according to different flow rates and prices as well as pump materials.
How to calculate the Head?
How to calculate the Head
4"AC/DC Brushless Solar Pump with Stainless steel Impeller Packaging

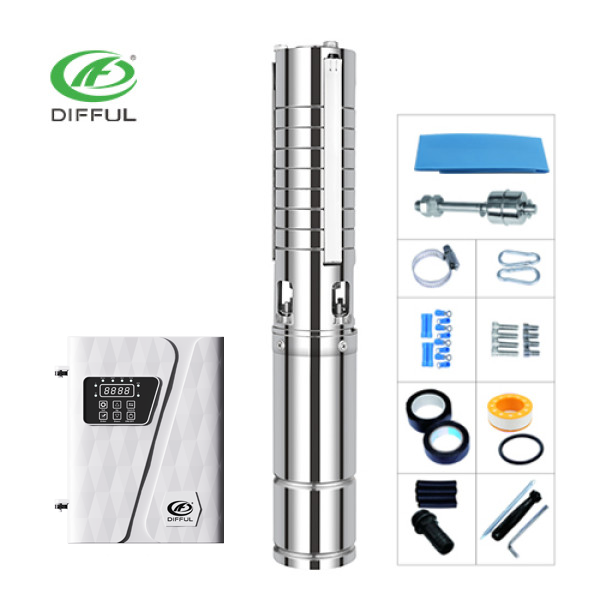

What we get for you: (Package Include)
- 1 x 4inch high-speed deep well pump with 2m cable
- 1 x AC/DC auto-switching controller with MPPT function
- 1 x Stainless steel or plastic float switch (sensor for tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
What You need to get by yourself: (Package DO NOT Include)
- Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up is required.
- Poly pipe from pump to the water tank. ( recommend 1.25inch or over-diameter poly pipe)
- Wire power cable (3 wires plus earth). we recommend cable size at least can't chicker than the original cable in the pump.
4"AC/DC Brushless Solar Pump with Stainless steel Impeller FAQ
What is the difference Between AC/DC Hybrid solar power Water Pump and DC solar water pump?
AC/DC solar powered water pump is avaliable for both Alternating Current power and solar energy, which allows the pump work in the low or non sunlight hours.
What if the product has quality problems?
2 years warranty. Any quality problem, please send the photo or video to us for checking, we will guide you to solve the problem online. If the quality problem can’t be solved by yourself, we can send the spare parts to you for replacement.
DC  Auto-Switching Controller Internal Wiring Diagram
How To Choose Solar Panel
The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DGS3-100/5-2200S-A/D model matches the solar panel voltage between 80V～430V.
4DSC3.5-50-48-400：
4DSC3.5-86-48-600：
4DSC3.5-86-72-600：
4DSC3.5-105-48-750：
4DSC3.5-105-72-750：
4DSC3.5-140-72-1100：
4DSC3.5-140-110-1100：
4DSC4.8-203-110-1500：
4DSC6-45-48-500：
4DSC6-67-48-750：
4DSC6-67-72-750：
4DSC6-101-72-1100：
4DSC6-101-110-1100：
4DSC6-146-110-1300：
4DSC9.5-50-72-750：
4DSC9.5-50-110-750：
4DSC9.5-75-110-1100：
4DSC9.5-90-110-1500：
4DSC15-45-72-750：
4DSC15-45-110-750：
4DSC15-55-110-1100：
4DSC16-70-110-1500：
4DSC20-48-110-1500：
4DSC25-26-110-1500：
