Large flow solar submersible pump for agricultural irrigation

Large flow solar submersible pump for agricultural irrigation

Large flow solar submersible pump for agricultural irrigation
Large flow solar submersible pump for agricultural irrigationLarge flow solar submersible pump for agricultural irrigationLarge flow solar submersible pump for agricultural irrigation
CategoriesDC SOLAR SUBMERSIBLE PUMP
BrandDIFFUL
ModelDQD
Typesolar submersible pump
Pump Body Materialaluminum
Package typewooden case
Warranty2 years
CertificateCE, GS, RoHS
Update TimeApr 28,2025
Detail Information

HIGH FLOW SOLAR SUBMERSIBLE PUMP

ITEM
Voltage
Optimum input voltage(DC)
Power
Max.Flow
Max.Head
Outlet
Cable
DQD5.5-14-24-300
24V
30V-48V
300W
5.5m³/h
14m
1''
5m
DQD7-18-48-550
48V
60V-90V
550W
7m³/h
18m
1''
5m
DQD7-26-72-750
72V
90V-120V
750W
7m³/h
26m
1''
5m
DQD7-26-110-750
110V
110V-150V
750W
7m³/h
26m
1''
5m
DQD12-30-110-1100
110V
110V-150V
1100W
12m³/h
30m
1.5''
5m
DQD25-25-110-110
110V
110V-150V
1100W
25m³/h
25m
2''
5m
DQD30-28-110-1500
110V
110V-150V
1500W
30m³/h
28m
2''
5m
DQD35-20-110-1500
110V
110V-150V
1500W
35m³/h
20m
2''
5m
DQD50-10-110-1500
110V
110V-150V
1500W
50m³/h
10m
3''
5m
HIGH FLOW SOLAR SUBMERSIBLE PUMP PARAMETER
HOW TO CHOOSE A PUMP
Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according todifferent folw and prices.
PRODUCT PACKAGING
Title
We offer you: (package included)
- 1 x High flow solar submersible pump with a 5 meter cable
- 1 x DC pump controller with MPPT function
- 1 x Cable connection connector kit
- 1 x Connector kit for waterproofing
Items you will need to purchase yourself: (not included in the package)
- Suitable solar panel.

CONTROLLER INTERNAL WIRING DIAGRAM

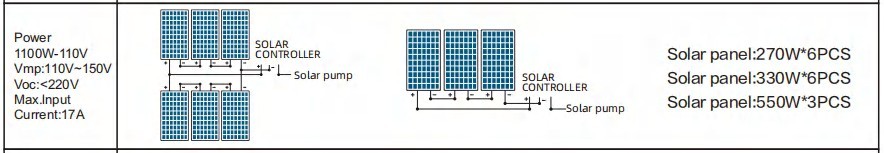

HOW TO CHOOSE SOLAR PANEL

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The DQD5.5-14-24-300 model matches the solar panel voltage between 30V~48V.
DQD5.5-14-24-300
DQD7-18-48-550
DQD7-26-72-750
DQD7-26-110-750
DQD12-30-110-1100
DQD25-25-110-1100
DQD30-28-110-1500
DQD35-20-110-1500
DQD50-10-110-1500
